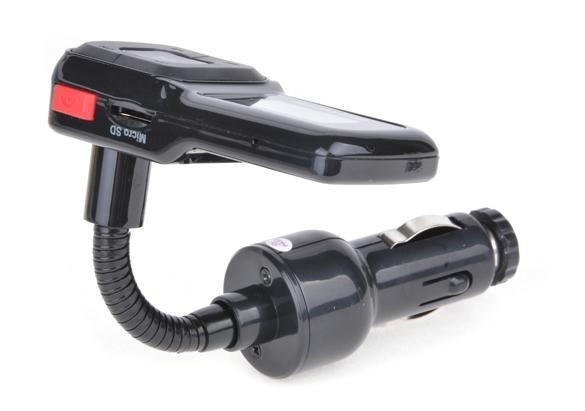

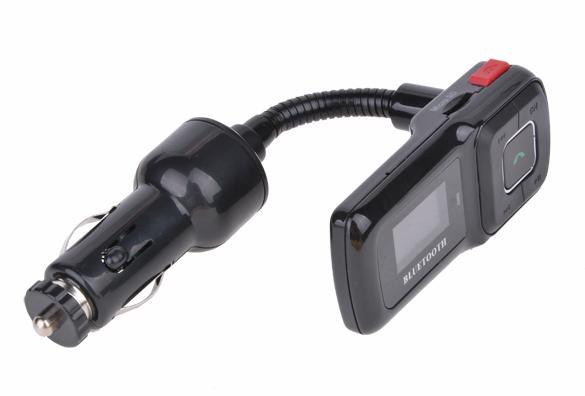

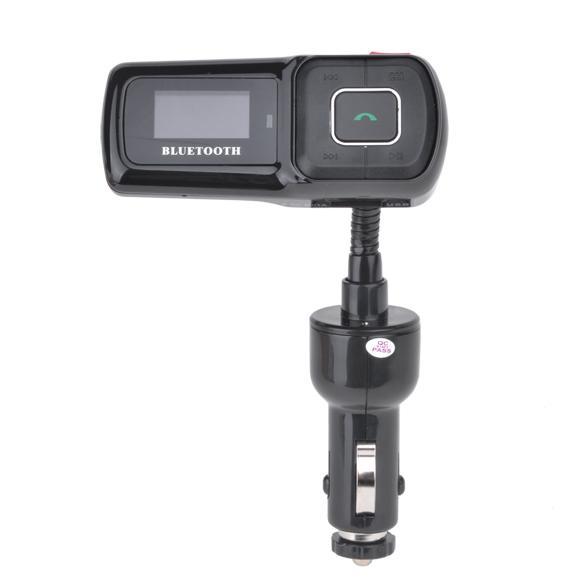

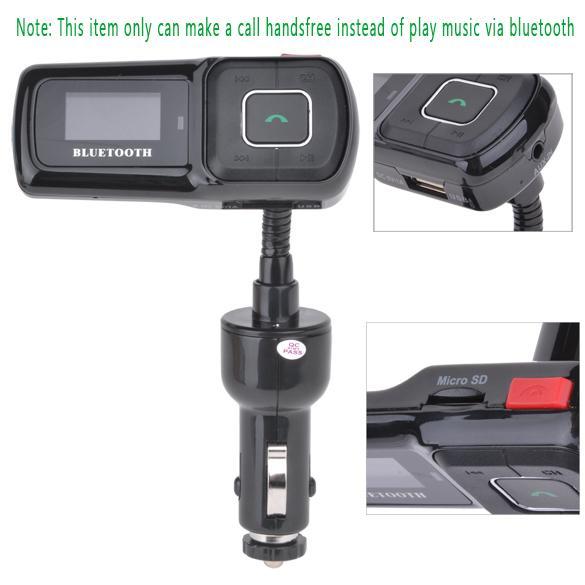

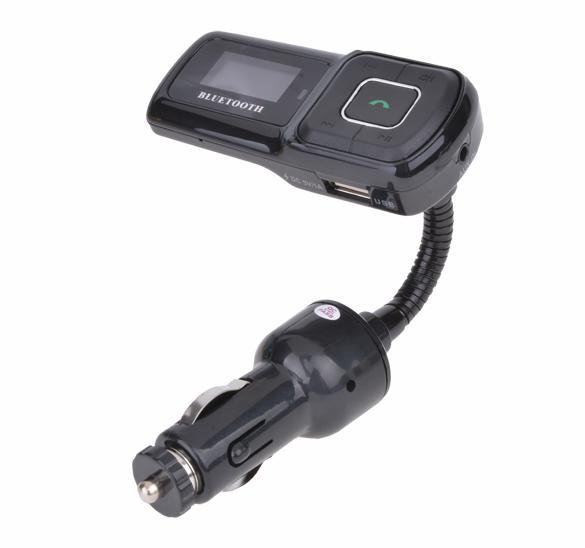

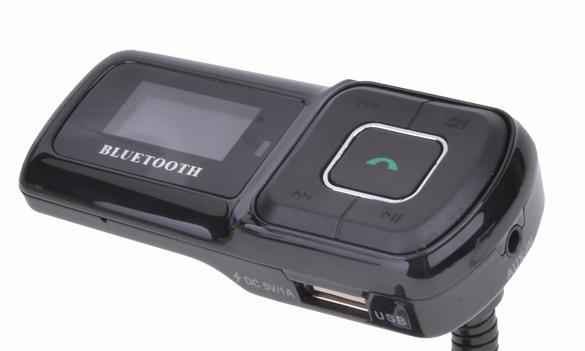

Car Kit FM Audio Transmitter Bluetooth Modulator MP3 Player USB SD Car Charge
100% Brand New.
Compatible: MP3 /
All products with Bluetooth function
This is a Bluetooth
Car Kit with Charger and AUX-in, which support USB disk and Micro SD
card, with multi-function, with the product, you can enjoy music and
pick the call up handsfree, it also has the function of Using USB
charger. Buy it today! You can’t miss it.
transmit phone call from Bluetooth mobile phone to the car FM stereo
2.With built-in microphone.
3.Built-in FM transmitter, full frequency: 87.5-108MHZ.
4.Supports USB disk and Micro SD card.
5.With 3.5mm line-in jack, support external audio devices.
6.Supports 7 loop modes: Repeat all, Random, Intro, Normal, Repeat
one, Folder, Repeat folder.
7.EQ for optional: Natural,Rock,Pop,Classic,Soft,Jazz,DBB
8.USB charging port for charging mobile phones and other devices
(output: DC 5V/1A).
9.Support 12-24V voltage from the car cigarette lighter.
10.Support multiple languages.
11.Strong and elegant design with LCD screen display.
12.Flexible metallic hose adapted for any type of autos.

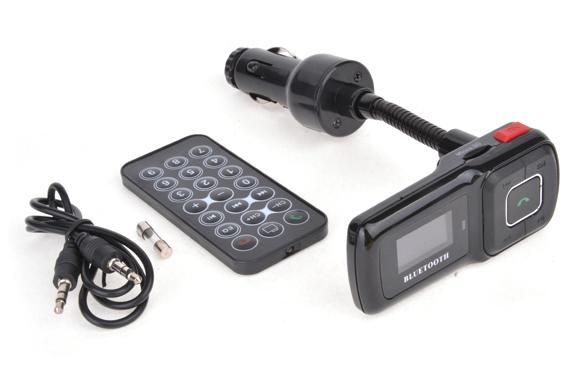

13.With infrared remote control, easy operation.
CSRBC6130 (CSR 2.1, Without A2DP)
Frequency: 87.5-108.0 MHZ
Frequency Stability: ±10ppmI (-10℃-+50℃)
USB Input: 12-24V
USB Output: 5V/1A
Music Format: MP3/WMA Format
USB (Maximum support): 32GB
Micro SD (Maximum support): 32GB
Transmit Distance: >10M
Solution IC: ACTION ATJ2009
Transmission IC: QN8027
Power IC : 1509
MP3 S/N RATIO: 50db
MP3 BITRTE: 32KPB-320KPBS
How to use it:
Using FM transmitter function:
the FM transmitter into your vehicle’ s cigarette lighter or power
your radio to an unused FM frequency, then match the same frequency
of this unit
a USB flash drive or Micro SD card which containing the MP3 files
into USB port or memory and slot of this unit accordingly.It
will play and transmit the MP3 files automatically
function:Use the provided audio cable to connect an MP3/MP4 player
or another external device to the AUX input of this unit. When
using this function, please stop payback of USB or memory card, and
all functions will be controlled by the external device
Using Bluetooth function:
Bluetooth for the first time, you need pair your mobile phone with
this unit. Activate
your mobile phone’s Bluetooth function, then search new device. When
the mobile phone detects this unit(named as “CAR KIT” ), please pair
and connect by using the original password “0000”
the musical playing mode, when there is an incoming call, this unit
will automatically switch to telephone mode
Notethe Bluetooth icon which displayed on the unit screen will be
stop flashing after the Bluetooth connected with your mobile phone.
press the green “Answer”button on the front of transmitter to answer
the incoming call
press the red “Hang o
