3 Axis TB6560 CNC Stepper Motor Driver 12-36V 3A

Estimated shipping time in UK is 3-8 working days. If customer need it quite urgently, please contact us for help before purchase.

* 3 Axis TB6560 CNC Stepper Motor Driver 12-36V 3A *

Features:

• Toshiba TB6560AHQ chip - High power, maximum 3.5A drive current chipset !

• 1-1/16 microstep setting - Higher accuracy and smoother operation than standard 1, 1/2 step!

• Adjustable 1.5A-3A drive current settings for each axis - 25%,50%,75%,100% of full current can be set for different stepper motors

• Overload, over-current and over-temperature safety - Full protection for your computer and peripheral equipment !

• On board current switching - Power output can be set according to specific user requirement !

• Full closed-type optical isolation to protect the user's computer and equipment

• Relay spindle interface - Outputs Max. 36V 7.5A for spindle motors or coolant pump (only one device can be powered by this output!)

• 4 channel inputs interface- Can be used for XYZ limit and emergency stop !

• Professional design - Two stage signal processing with super anti-jamming !

• Bipolar constant current chopper drive with non-resonant region - Controls motors smoothly through range without creep effect !

• Four control inputs (divided into pairs of knives) - Allows setting of limit and emergency stop !

• Universal architecture - Supports most parallel software MACH3,KCAM4 etc!

Dip settings:

Current Setting	1	2	Decay Mode Settings	3	4	MicroStep Settings	5	6
100%	ON	ON	FAST	ON	ON	1	ON	ON
75%	ON	OFF	25%	ON	OFF	1/2	ON	OFF
50%	OFF	ON	50%	OFF	ON	1/8	OFF	ON
25%	OFF	OFF	SLOW	OFF	OFF	1/16	OFF	OFF

Further Details:

• Power supply DC 12-36V (not included in this listings. Please feel free to check our other listings for power supply)

* Voltage Selection:

12-16V DC power supply for Nema 17 stepper motors

16-24V DC power supply for Nema 23 stepper motors

24-36V DC power supply for Nema 34 stepper motors

Important: High voltage will burn up the chips or stepper motors!!!

* Ampertage Selection:

Output current of the power supply can be calculated by the following expressions:

Output current = Rated current of your stepper motors * quantity + 2A

For example, if you want to drive 3 * 3A Nema 23 stepper motors, theoretically 24V 11A DC power supply is recommended, but higher power such as 24V 15A also will be good.

If you are not sure about the selection of power supply, please feel free to contact us for help.

• The power output of 12V shall be applied to the radiator fan of 12V

• Driver output compatible with 2 or 4 phase, 4,6 or 8 lead stepper motors, 3A max.

• Suitable for unipolar or bipolar stepper motors.

• Voltage regulated spindle speed controlled by parallel interface as function of supply voltage.

*NOTE: Please SHUT DOWN the power before you plug or unplug the connectors to avoid burning up the board.

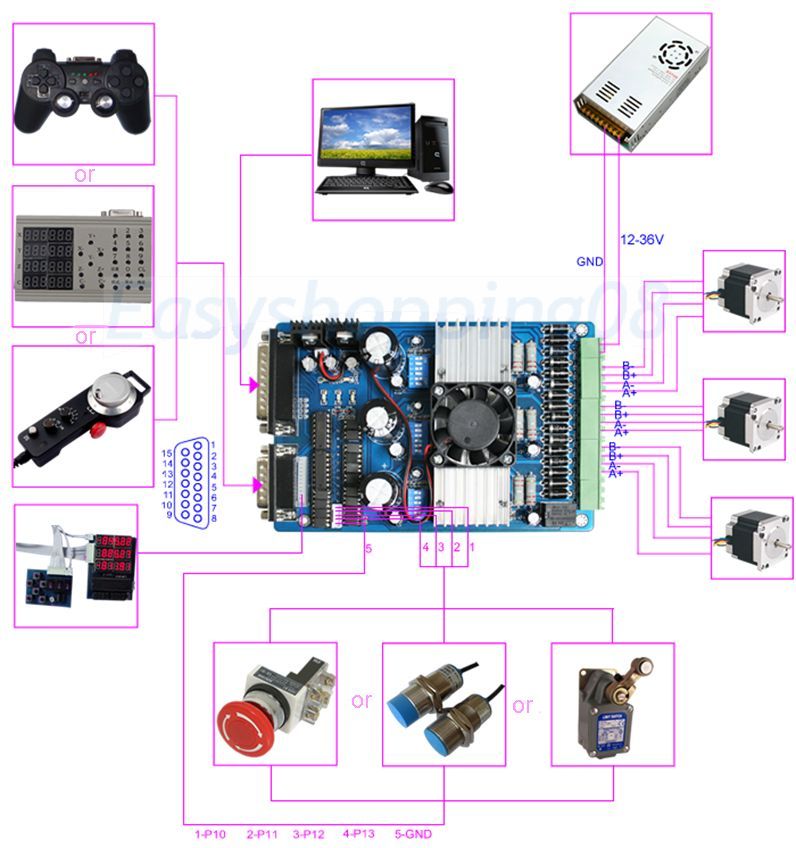

Connection Wiring:

*NOTE: These external tools on the top and bottom of the following picture are for reference purpose ONLY, we don't have them for selling at the moment!
