The GPS Tracker GPS303D is the newest tracker on the market, it can locate accurately and be used for protecting child / Elderly / disabled / Vehicles, set multiple functions of security, positioning, monitoring surveillance, emergency alarms and tracking in its entirety. Managing personnel and Tracking criminals secretly.
It working based on existing GSM/GPRS (850/900/1800/1900MHz) GSM network and GPS satellites, locate and monitor any remote targets by SMS or Computer or PDA.
- Used widely for vehicles and other moving objects tracking
- Compact, elegant appearance, easy to hide, mini size design, and outdoor installation
- Built-in GSM, GPS antenna
- Support GPS and LBS (location based service) double tracking solution
- Support SMS / GPRS / Internet Network data transmission (GPRS/Internet instructions includes in CD in package）
- Support configures the settings remotely
- Set multiple functions of security, tracking, monitoring surveillance, emergency alarms and management in its entirety
- Automatic update positions of vehicle turns, External power off alarm, LBS+GPS location, Cut off oil/power remotely, Storage and Data load, SOS Alert
- Sleep mode by time or shock sensor, forward the third parties' message
- Fuel less or theft alarm, alarm without GSM network
- Movement ,geo-fence alert ,shock sensor alarm, low battery alarm, view map on the cell phone screen, Get address name in SMS from cell phone
- Free PC installation GPRS tracking & monitoring software
- Configure parameters by USB cable (Free, include in the package)
- Support to work on www.gpstrackerxy.com, demo account is, demo, password, 8888. It has 7 days trial time, but after trial time, you will need pay $5 yearly fee for each device One year! Thanks

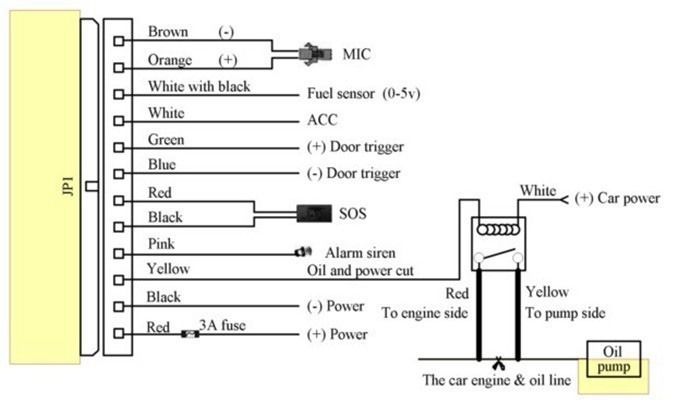

Find the 12 PIN harness and insert it into the corresponding holes of the products, and connect the wires with the original car circuit showing below:
- Network: GSM/GPRS
- Band: 850/900/1800/1900Mhz
- GPS sensitivity: -159dBm
- GPS accurancy: 5m
- GPS start time
- Cold status: 45s
- Warm status: 35s
- Hot status: 1s
- Car power supply: 12 V -24V
- Back up battery: Chargeable 3.7V 800mAh Li-ion battery
- Storage Temp: -40°C to +85°C
- Operation Temp.: -20°C to +65°C
- Humidity: 5%--95% non-condensing
- DIM: 8.9×5.0×1.3cm
- Weight: 71g
Main Function (GPS303)
1. Single Locating
2. Auto track continuously
* Track with limited times upon time interval
* Smart track upon time and distance interval
3. Location based service (LBS)
4. Automatic update positions of vehicle turns
The tracker will update the positions automatically to web server once the vehicle changing driving direction over pre set angle value to form a smooth trajectory consistent with the actual road, this function works only in GPRS mode.
5. Absolute street address by SMS
6. Track mode
8. GPS drift suppression
9. External power off alarm
11. Data load
12. SOS Alert
13. GPS blind Spot alert
14. Movement alert
16. Multi-area management
17. Low battery alarm
18. Sleep Mode
19. Forward the third parties' message
20. Charges Inquiry
21. Cut off oil/power system
22. Function of Remote controller
23. ACC working alarm
24. Door Alarm
25. Fuel alarm
26. Alarm without GSM network service
27. TCP/UDP Switch
28. Configure parameters by USB
Find the USB cable in the package to connect tracker with computer, open the memory of the tracker, find and open the initial configuration file with notepad, operate according the instructions.
Note: Correct password is needed every time you configure the tracker.
29. Terminal (Local) time setting
30. TCP/UDP Switch
Send SMS "reset + password" to tracker, it will reply " reset ok", the GSM and GPS module of the tracker will be reset.
32. Less GPRS Traffic
Note:This item does not come with a GSM sim card you can buy one in the local store
How does the GPS 303 Tracker work?

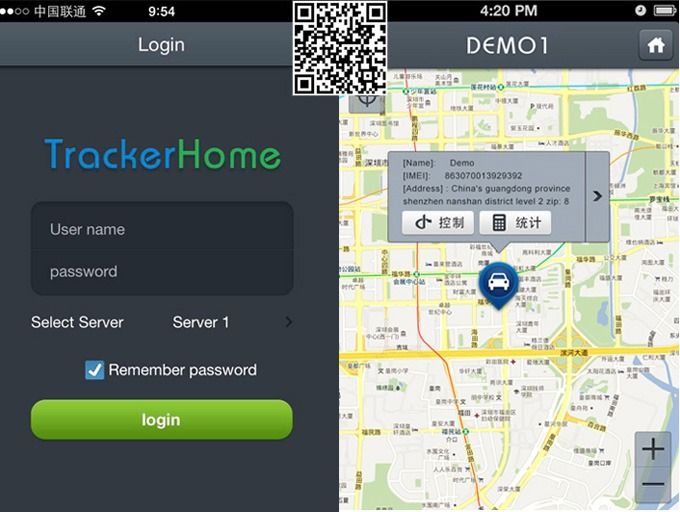

1.Track on PDA &Cell Phone

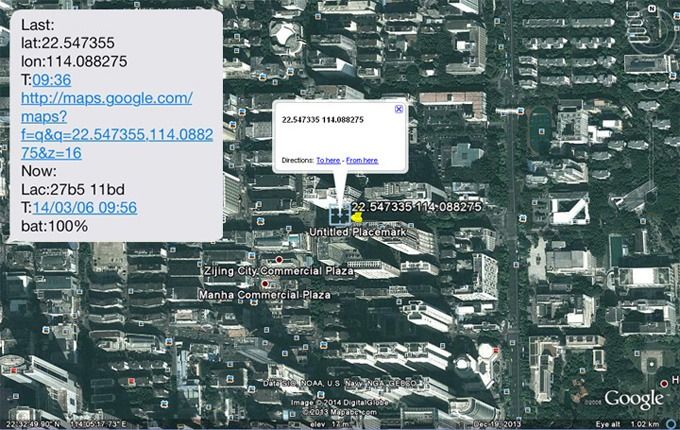

The SMS received from tracker including an http link, enter the link through your PDA or cell phone to get the detailed position anywhere and anytime. As shown below:
Note:PDA or cell phone for this function must/support pictures viewing/and internet capability.

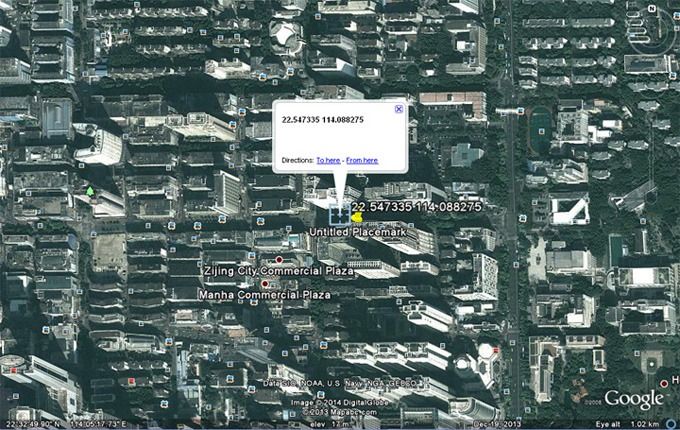

2.Track on Google earth
Enter the latitude and longitude on Google earth, as follow:

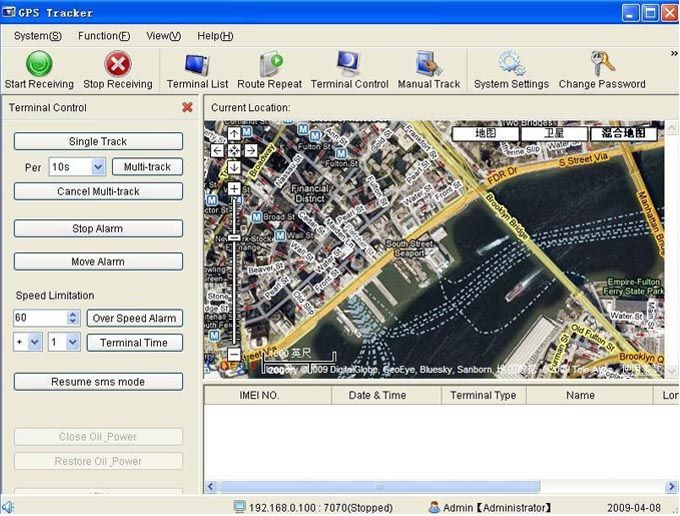

3. Track on GPRS Monitor Software in CD to Install in Your PC: Real time track on your PC and route repeat.

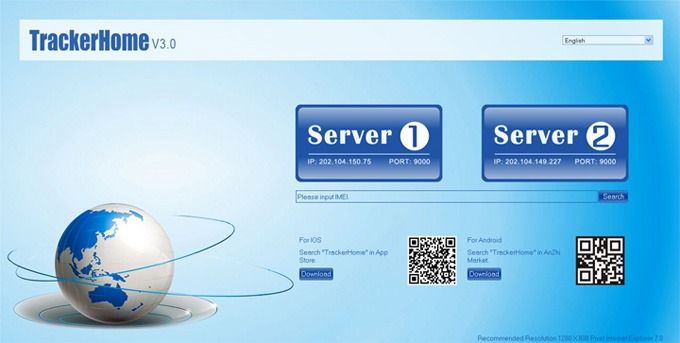

4.Track on GPRS Web-server Monitor Center:Real
Demo on www.gpstrackerxy.com (Test ID:demo Password:8888)
The website www.gpstrackerxy.com ,supports English, Portuguese, Spanish, Thai, Simplified Chinese.
Note:7 days free!
If you still want the service,please send your IMEI to us,we will provide the service after your payment for one year.
- 1X GPS Tracker GPS303D
- 1X Relay
- 1X Remote Control
- 1x Screwdriver
- 1X Manual
- 1X Software CD
